Achieving efficient, uniform, and comfortable temperature control in large high-ceiling spaces such as stadiums, exhibition centers, and industrial facilities has long been a major challenge in HVAC. Traditional central air conditioning systems rely on extensive duct networks that are complex to install, consume significant space, and often lead to energy loss and uneven temperatures. HoweverColumnar Jet Air ConditionerWith its unique "ductless remote air delivery" design, [it] is becoming the ideal solution to this challenge.

1. What is "Ductless Remote Air Distribution"?

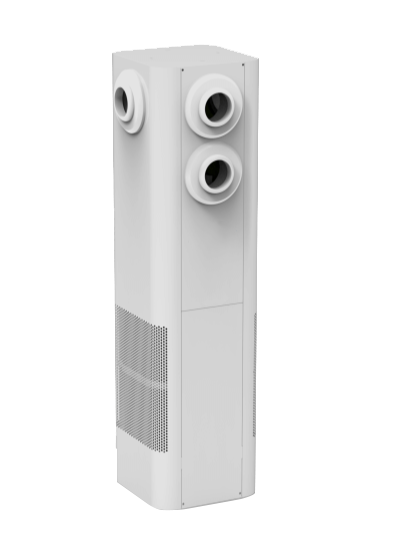

Traditional central air conditioning systems rely on complex supply and return ductwork to distribute conditioned air throughout a space. Column jet air conditioners completely transform this approach. By eliminating large, energy-inefficient ducts and retaining only water supply and return pipes, these units integrate high-efficiency fans and specially designed nozzles. This allows them to deliver conditioned air directly and over long distances into the space as high-speed jets.

The core of this design lies inJet TechnologyThe unit's internal fan generates a high-velocity airflow that passes through heating or cooling coils and is discharged at high speed through specialized nozzles (e.g., spherical or parallel-flow types). This jet entrains and mixes with large volumes of surrounding room air, creating a rapidly expanding mixed-air stream for long-distance air distribution. The system operates without ductwork, enabling precise directional airflow control—delivering air exactly where needed.

II. Revolutionary Advantages of the Ductless Design

Removing the duct is not merely a structural simplification; it delivers significant technical and economic advantages:

Significantly reduce energy consumption: This is one of the core advantages. First, it eliminates air leakage losses inherent in duct systems (traditional systems can lose 5%–10%). Second, by removing the need to insulate long duct runs, it significantly reduces insulation material costs and heat loss from pipe walls. Finally, water as an energy transfer medium offers far higher delivery efficiency than air, allowing for smaller pipes and a more efficient overall system. In practice, energy consumption in industrial workshops and similar settings can be reduced by over 35% compared to traditional systems.

Space-Efficient & Flexible InstallationEliminates complex ductwork within the ceiling, freeing up valuable building space and reducing ceiling height requirements for greater design flexibility. The unit features a modular design with floor-standing installation and supports versatile single-, double-, triple-, or four-sided air distribution configurations to adapt seamlessly to large spaces of any shape or function. Installation is simple and fast—once secured and tuned, the equipment is ready to operate.

Improve air quality and comfortTraditional duct systems tend to accumulate dust, creating a breeding ground for pollutants and bacteria. A ductless design eliminates this issue entirely. By optimizing nozzle design and implementing intelligent controls, columnar jet air conditioners achieve highly uniform temperature distribution. For example, in basketball arenas, they can precisely control airflow velocity in the playing area versus the spectator zone, preventing uncomfortable direct drafts and enhancing overall thermal comfort.

Achieve precise heating and coolingWith adjustable flow-geometry diffusers, the column jet air conditioner can modify airflow patterns. In summer cooling mode, it uses a "jet" pattern to deliver cool air over long distances. In winter heating mode, it switches to a "swirl" or diffusion pattern, allowing warm air to settle naturally and effectively addressing common issues in high-ceiling spaces, such as poor heat distribution and thermal stratification.

3. Core Use Cases: Where Does It Fit Best?

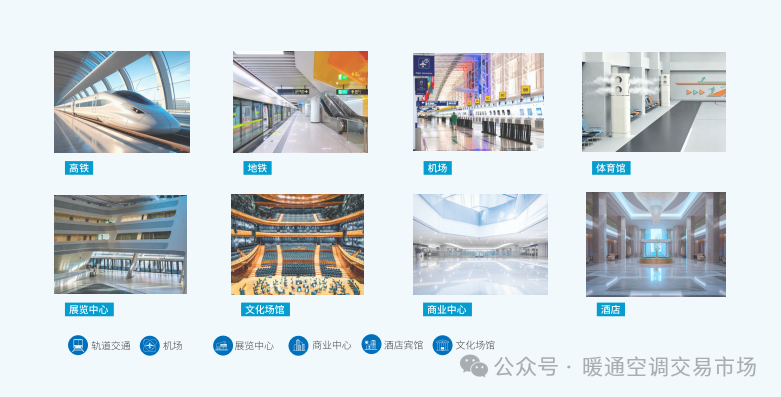

Based on the advantages outlined above, columnar jet air conditioners are particularly well-suited for large spaces with ceiling heights exceeding 4 meters, including:

Sports Venues:For venues such as basketball courts, badminton halls, and swimming pools. Requires rapid temperature adjustment to avoid airflow interference with play, along with zoned control to meet the distinct needs of spectators and athletes.

Transportation Hub:Suitable for airports and high-speed rail stations. These spaces feature high ceilings, dense but unevenly distributed crowds, and ductless designs that flexibly handle internal zone loads and external glass curtain wall loads.

Exhibition and Conference Center:Spacious and adaptable layout. Modular units adjust to changing booth configurations, while remote air delivery ensures uniform temperature and humidity throughout every corner to protect your exhibits.

Industrial Facility:Such as automotive manufacturing and logistics warehouse facilities, which often have strong requirements for cooling and ventilation. Our high-efficiency, energy-saving design, along with heat and dust resistance, makes it ideal for these environments.

Large Commercial Spaces:For mall atriums, supermarkets, and large restaurants. Delivers rapid cooling and uniform air distribution to enhance customer comfort while meeting energy efficiency requirements.

IV. Key Points in Selection and Design

Columnar jet air conditioners shift the focus of design and selection from complex duct layout calculations toAirflow organization calculation.

Engineers must select the appropriate diffuser type and unit model based on parameters such as air throw distance, installation height, and indoor design temperature to ensure:

• Cool or warm air reaches the target area precisely.

• The cold jet does not drop mid-flight, preventing discomfort.

• Hot air can achieve sufficient throw distance.

• The temperature difference in the workspace meets the design requirements.

Additionally, account for the interactions and superposition effects of jets from multiple nozzles to optimize layout for maximum coverage and uniformity.

The columnar jet air conditioner, featuring innovative "ductless remote air delivery," not only simplifies system architecture but also delivers a quantum leap in energy efficiency, comfort, flexibility, and health. It serves as a powerful alternative to traditional large-duct systems for spacious applications and is a key driver of green building and high-efficiency HVAC solutions. As demands for lower building energy consumption and improved indoor environmental quality continue to rise, the columnar jet air conditioner will play an increasingly vital role in climate control for large spaces.
